HP02G

Brand:

T TECHLOQ HP02G: Iron Gate Specialist

Engineered specifically for Malaysian iron gates, the HP02G combines rugged stainless steel construction with minimalist design. Its weather-resistant build and ergonomic handle provide lasting durability while maintaining sleek aesthetics.

This model offers secure fingerprint and RFID card access, requiring authentication from both sides for enhanced safety. Perfectly paired with the HP10 for complete entry solutions, it delivers premium protection and value for discerning homeowners.

Features

The smart lock supports up to 100 unique fingerprint entries, making it suitable for both residential and commercial use. Whether it’s a large family, office staff, or authorized personnel, each user can register their fingerprint for quick, secure access. The fingerprint scanner is designed for fast recognition (typically <0.5 seconds) and high reliability, even with slightly dirty or wet fingers.

The smart lock system is equipped with Access Card Authentication—a fast, reliable, and user-friendly method for unlocking the door without relying on biometrics or mobile devices. This feature making it an ideal solution for users who prefer traditional methods or need a quick, contactless alternative to biometric access.

Generate temporary PIN codes directly from your smartphone app or control panel for visitors, deliveries, or short-term guests. These codes can be time-bound or single-use, ensuring limited access without compromising overall security. Perfect for Airbnb hosts, office receptions, or any scenario where access needs to be granted on a limited basis.

While the lock is fully electronic, it includes a traditional mechanical key override for emergencies. Whether there’s a power outage, battery failure, or technical issue, the key offers a reliable backup unlocking method. It’s discreetly located to maintain the device’s sleek design while ensuring maximum preparedness.

The built-in anti-tamper sensor detects forced entry attempts such as prying, drilling, or physical tampering. When triggered, it immediately sounds a loud alarm and sends a push notification (if connected via Wi-Fi). This proactive feature acts as both a deterrent and a real-time alert for security breaches.

Through the dedicated mobile app (iOS and Android), users can unlock the door remotely from anywhere in the world, provided the lock is connected to Wi-Fi. This feature allows you to let in family, friends, or service providers even when you’re away. You can also monitor status, battery level, and lock history directly from your phone.

The smart lock maintains a detailed access log showing who entered and when. You’ll receive instant push notifications on your smartphone for every unlock attempt, whether successful or failed. This feature enhances security awareness and is especially valuable for parents, property managers, or business owners.

  1. 3D Face Recognization
  2. 100 fingerprint Access
  3. 2 access card
  4. Temporary / one time visitor passcode available
  5. Mechanical Key for emergency unlock
  6. Smart phone unlock (w/ Bluetooth or Wi-Fi)
  7. Anti-pry alarm
  8. Passage Mode (timing adjustable) (door will remain unlock even the door closed)
  9. Entrance record and push notification (Wi-Fi)
Anti-Pry

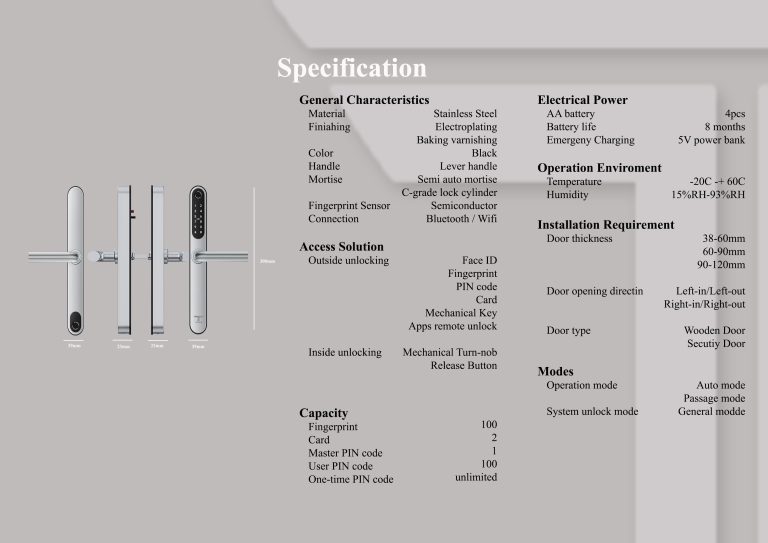

Specifications
General Characteristics
Material
Stainless Steel
Finishing
Electroplating, Baking varnishing
Color
Black
Handle
Lever handle
Mortise
Full auto mortise, C-grade lock cylinder
Fingerprint Sensor
Semiconductor
Connection
Bluetooth / Wifi
Access Solution
Outside unlocking
Face ID, Fingerprint, PIN code, Card, Mechanical Key, Apps remote unlock
Incide unlocking
Mechanical Turn-nob, Release Button
Capacity
Fingerprint
100
Card
2
Master PIN code
1
User PIN code
100
One-time PIN code
Unlimited
Electrical Power
AA battery
4 pcs
Battery life
8 months
Emergeny Charging
5V power bank
Operation Enviroment
Temperature
-20C + 60C
Humidity
15%RH – 93%RH
Installation Requirement
Door thickness
38 – 60mm
60 – 90 mm
90 – 120mm
Door opening direction
Left-in/Left-out
Right-in/Right-out
Door type
Wooden Door
Security Door
Modes
Operation mode
Auto mode, Passage mode
System unlock mode
General mode
